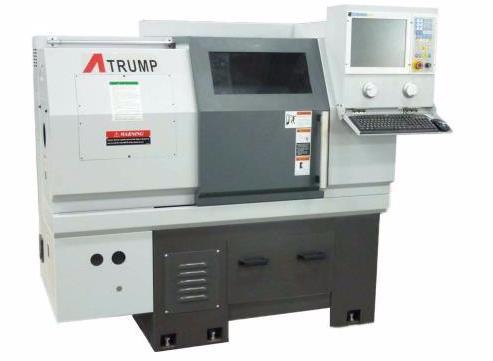

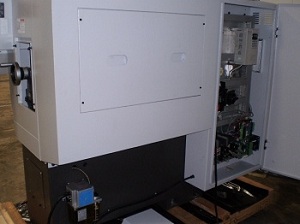

CNC Lathe Model: LC-1220

MACHINE FEATURES

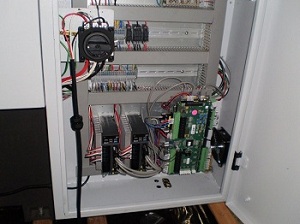

 Centroid T400 control with 15” LCD
 5HP Spindle Motor, D1-4, 1-9/16” through hole spindle
 Max 4,000 rpm spindle speed
 Hardened & Ground way
 C5 Double nut precision ball screws hardened & ground for high accuracy and long lasting
 FC30 Meehanite  Casting main frame with annealed & stress relieved for long term reliability
 100% Laser tested for positioning accuracy & repeatability
 Rugged cast iron design to provide maximum rigidity & stability
 Tool box & Tools
 Full enclosure with electrically interlocked
 Coolant System
 Central lubrication system
 Built-in Quartz work light
 Dual Hand Wheel for manual operation (STD)
BRIEF SPECIFICATION:
Model
LC-1220
Basic dimension
Height of Center
160 mm          6.3 inch
Swing over Bed
320 mm          12.6 inch
Swing over Cross Slide
180 mm            7 inch
Distance Between Centers
500 mm         20inch
Bed
Width of Bed ways
190 mm      7.56 inch
Spindle
Spindle nose mounting
STD: D1-4
Spindle bore
STD: 40 mm 1-9/16 inch
Taper of spindle bore
M.T.#5
Range of spindle speeds

300 to 4000 RPM
Longitudinal travel (Z axis)
(Ball screw 40?x10? C5)
500 mm
19.5 in.
Cross slide travel (X axis)
(Ball screw 25?x 5? C5)
160?          6.3 inch
Rapid travel / Cutting feed rate             360 / 120 ipm
Tool

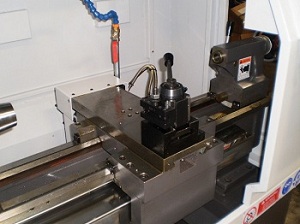

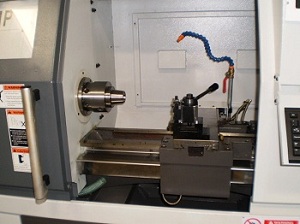

Quick change tool post
Max. size cutting tool
20 mm         3/4 inch
Tailstock

Tailstock quill diameter

Tailstock quill Taper
M.T.#3
Tailstock quill travel
100 mm      4 inch
Motor
Main spindle motor
5 HP.       3.7KW
Machine Net weight
1,720 lbs.   800 kgs.
Crate Dimension (L x W x H)
70”*48”*60”

STANDARD ACCESSORIES:

Tools & box
Auto lube system
Shop floor programming/Conversational
Leveling bolts & plate
Full guarding
15” color LCD
Operation manual
Coolant system
RS-232 Interface
Halogen work light
USB 2.0 port

1 GB solid state hard drive

Additional Accessories information:

Power requirement

15Amp 3 phase 208 V/230 V max
Type of oil for Way oil / Gear oil / pneumatic oil
Mobil Vactra #2 / Mobil 1 gear / Air tool oil
Coolant capacity




10 Gallons

   CNC LATHE
MODELSPINDLETravel X/ZTool PostCNC SYSTEMSPINDLE MOTORAXES MOTORFOB CA
LC1220D1-48/31.5”Quick changeT4003.7Kw(5HP )AC$29,500

  Machine Optional accessories:
3J06D1-4 6" 3-Jaw Chuck for D1-4 for 12" lathe $420.00
4J8D1-4 8" 4-Jaw Chuck for D1-4 $460.00
A5C Air 5C collect closer $3,660.00
M5C Manual 5 C collect closer $480.00

Software optional:
   Rigid tapping [G74 & G 84] (includes 10620) 10810 $495.00
